Two-side structural glazing
Glass bonded on two sides with the frame visible top and bottom.
FACADE · AJMAN, UAE
Structural glazing in Ajman.
Dreams designs, fabricates and installs structural glazing in Ajman, bonding glass to an aluminium frame so the facade reads as one smooth glass surface. We supplied structural glazing for CIM Steel Industries in Umm Al Quwain and serve clients across Ajman and the UAE.
01 / THE SERVICE
Structural glazing by Dreams, made in Ajman.
Structural glazing uses structural silicone to bond glass panels to a hidden aluminium frame, so the facade shows glass from edge to edge with little or no visible metal on the outside. It is used where a building wants a clean, modern glass line rather than the grid look of a standard window wall. Dreams designs, fabricates and fits structural glazing from our own workshop in Ajman Industrial Area 1.
Because the glass is structurally bonded rather than mechanically clamped on show, the silicone joint, glass thickness and frame have to be sized correctly for wind and thermal load. We supplied structural glazing as part of the facade package for CIM Steel Industries in Umm Al Quwain, and take on structural glazing for offices and commercial buildings across Ajman, Sharjah, Dubai and the rest of the UAE.
Four-side structural glazing
Glass bonded on all four sides for a fully frameless exterior line.
Vision & spandrel combinations
Clear glass paired with opaque panels to conceal slabs and services.
Insulated glazing units
Double-glazed units within the structural frame for extra thermal performance.
Tinted & reflective glass
Glass tone selected to manage heat and glare on the facade.
02 / APPLICATIONS
Where we install structural glazing.
Office buildings
Frameless glass facades for corporate offices and business centres.
Showrooms
Clean glass frontages that keep the display uninterrupted by frames.
Industrial facilities
Structural glazing on facades and office blocks within industrial sites, as at CIM Steel Industries.
Hotels
Glazed public areas and towers with a smooth exterior finish.
Malls & retail centres
Frameless glazing for entrances and shopfronts within larger developments.
Atriums & lobbies
Tall frameless glass sections for entrance lobbies and atriums.
03 / MATERIALS & FINISHES
What goes into it.
We confirm every material, colour and fitting with you before fabrication starts.
- Aluminium sub-frame
- Thermal-break aluminium sub-frame hidden behind the glass line.
- Structural silicone
- Weather-rated structural silicone sized to the glass weight and wind load.
- Glass
- Toughened, laminated or insulated glass units depending on the span and thermal requirement.
- Gaskets
- EPDM gaskets to manage movement and keep the joint weathertight.
- Fixings
- Stainless steel 316 anchors and brackets, preferred in coastal conditions.
04 / GALLERY
Our work.

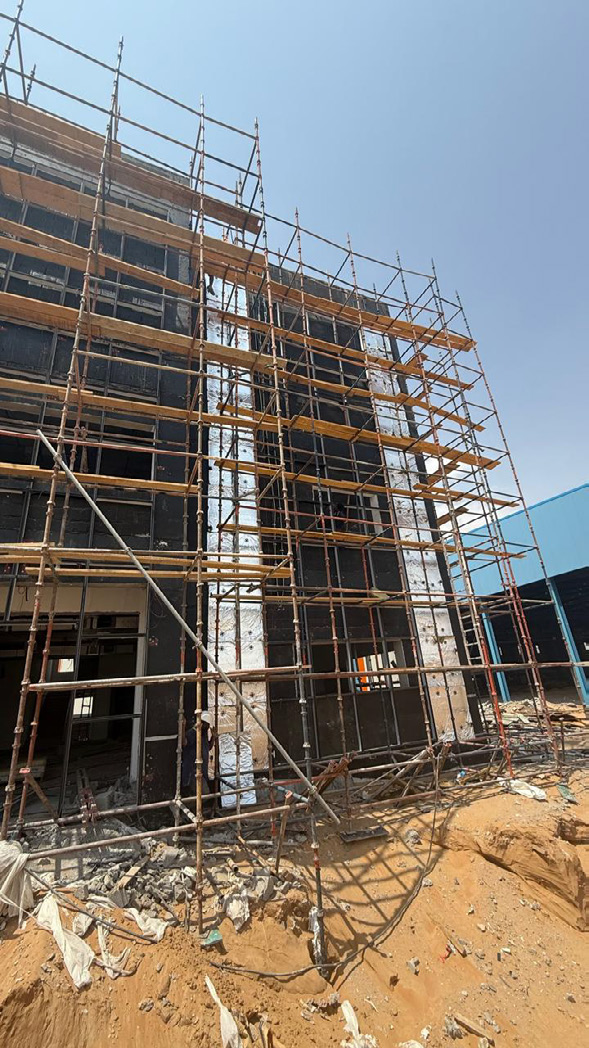

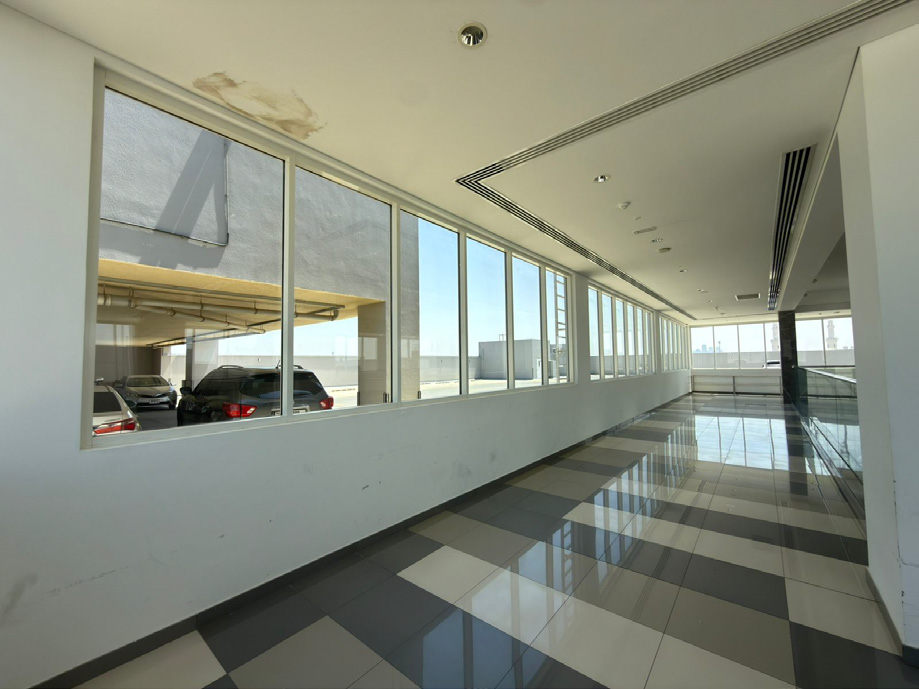

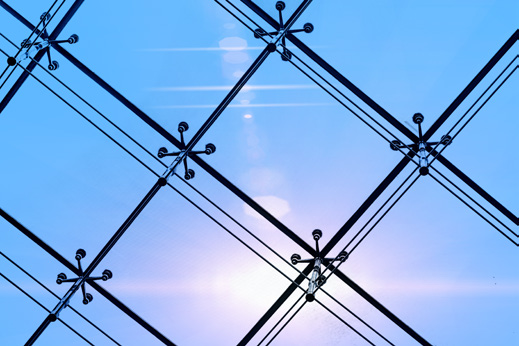

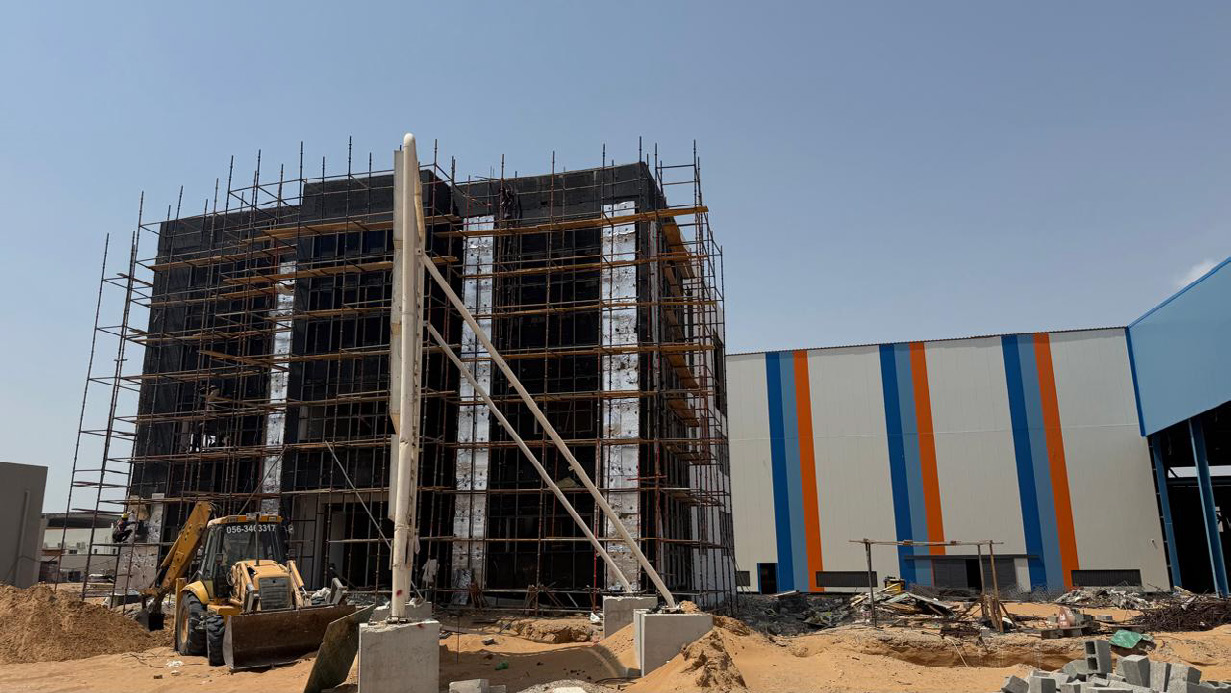

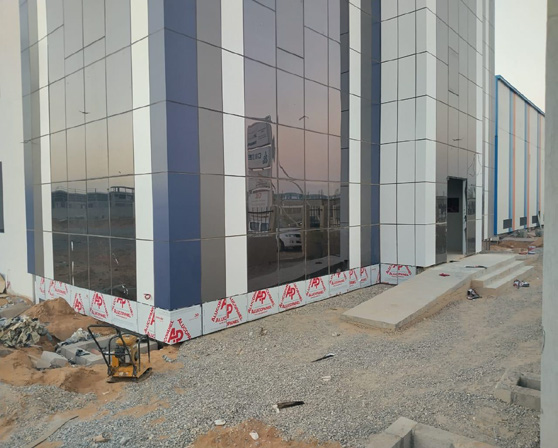

Images marked “illustrative” show the type of system; all others are Dreams projects. See completed projects ↗
05 / OUR PROCESS
Designed. Fabricated. Installed.
One team from first drawing to final handover.
- 01
Enquiry & drawings
Send your drawings, BOQ, photos or rough sizes on WhatsApp or through the quote form.
- 02
Site survey & measurement
At the site survey we check wind load, glass span and the building's fixing points, since these decide the silicone joint width and glass thickness for structural glazing.
- 03
Quotation & approval
You receive a clear, itemised quotation. Profiles, glass, colours and hardware are confirmed before we start.
- 04
Fabrication in Ajman
Cutting, machining, assembly and quality checks in our workshop in Ajman Industrial Area 1.
- 05
Installation & handover
Our own team installs, seals, cleans and hands over — with after-service when you need it.
06 / WHY CHOOSE US
Why choose Dreams for structural glazing.
Since 2006 · 150+ projects · 7 emirates
Silicone joint expertise
Structural silicone joints are sized and applied to match wind load and glass weight.
In-house fabrication
Sub-frames and glass units are prepared in our Ajman workshop before installation.
Project experience
Structural glazing supplied for CIM Steel Industries, Umm Al Quwain.
Subcontractor capability
We deliver structural glazing packages directly or as subcontractor to a main contractor.
FREQUENTLY ASKED QUESTIONS
Structural glazing in Ajman: FAQs.
Do you install structural glazing in Ajman?
Yes. Dreams designs, fabricates and installs structural glazing in Ajman and across the UAE, including a facade package for CIM Steel Industries in Umm Al Quwain.
What is structural glazing?
It is a facade system where glass is bonded to an aluminium frame with structural silicone, so the outside shows a smooth, continuous glass surface with little visible framing.
How much does structural glazing cost?
Cost depends on facade area, glass type, frame design and site access. Send drawings or photos and approximate dimensions for a free quotation.
Is structural glazing different from a curtain wall?
Structural glazing is a bonding method that can be used within a curtain wall or window wall system. Not every curtain wall uses structural glazing, and not every structural glazing job is a full curtain wall.
Can you work on structural glazing as a subcontractor?
Yes. We take on structural glazing packages for contractors, developers and design firms as well as direct clients.
